Block Cross,10000 psi

TYA is the manufacturer of High Pressure fittings Block Cross,10000 psi, 700 Bars . We make Variety of Stainless Steel high pressure fitting 10000 psi . Block Cross or Box Cross is made from Solid Square Bar and can be used for pressure upto 15000 psi .

Common sizes are 1/8″ NPTF, 1/4″ NPTF, 3/8″ NPTF, 1/2″ NPTF, 3/4″ NPTF, 1″ NPTF.

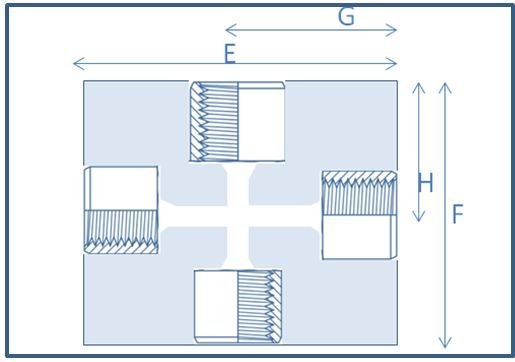

Part No. Connections E F G H Thickness
FHPF/BC/10K/2-2I 1/8″ 1 ½” 1 ½” ¾” ¾” 3/4″
FHPF/BC/10K/4-4I 1/4″ 2” 2” 1” 1” 1”
FHPF/BC/10K/6-6I 3/8″ 2” 2” 1” 1” 1”
FHPF/BC/10K/8-8I 1/2″ 2 5/8” 2 3/4” 1 5/16” 1 3/8” 1 ½”
FHPF/BC/10K/12-12I 3/4″ 2 5/8” 2 3/4” 1 5/16” 1 3/8” 1 ½”
FHPF/BC/10K/16-16I 1″ 4 1/8” 4 1/8” 2 1/16” 2 1/16” 1 ¾”
