TYA 325D-14T Induction Pipe Bending Machine — Thank You America LLC
Hot induction pipe bending machine solutions for large-diameter, heavy-wall pipelines — built for accuracy, strength, and long-term performance.
Thank You America LLC (TYA) manufactures and supplies the TYA 325D-14T — a heavy-duty induction pipe bending machine engineered for pipe up to 325mm (12.75″) OD and 14mm wall thickness. Built for pipe fabrication facilities, industrial contractors, and OEM manufacturers across the United States, the TYA 325D-14T delivers consistent bend geometry, minimal wall distortion, and reliable production performance across carbon steel, alloy steel, stainless steel, and duplex pipe grades. Custom machine configurations for larger diameter or heavier wall requirements are available on request.

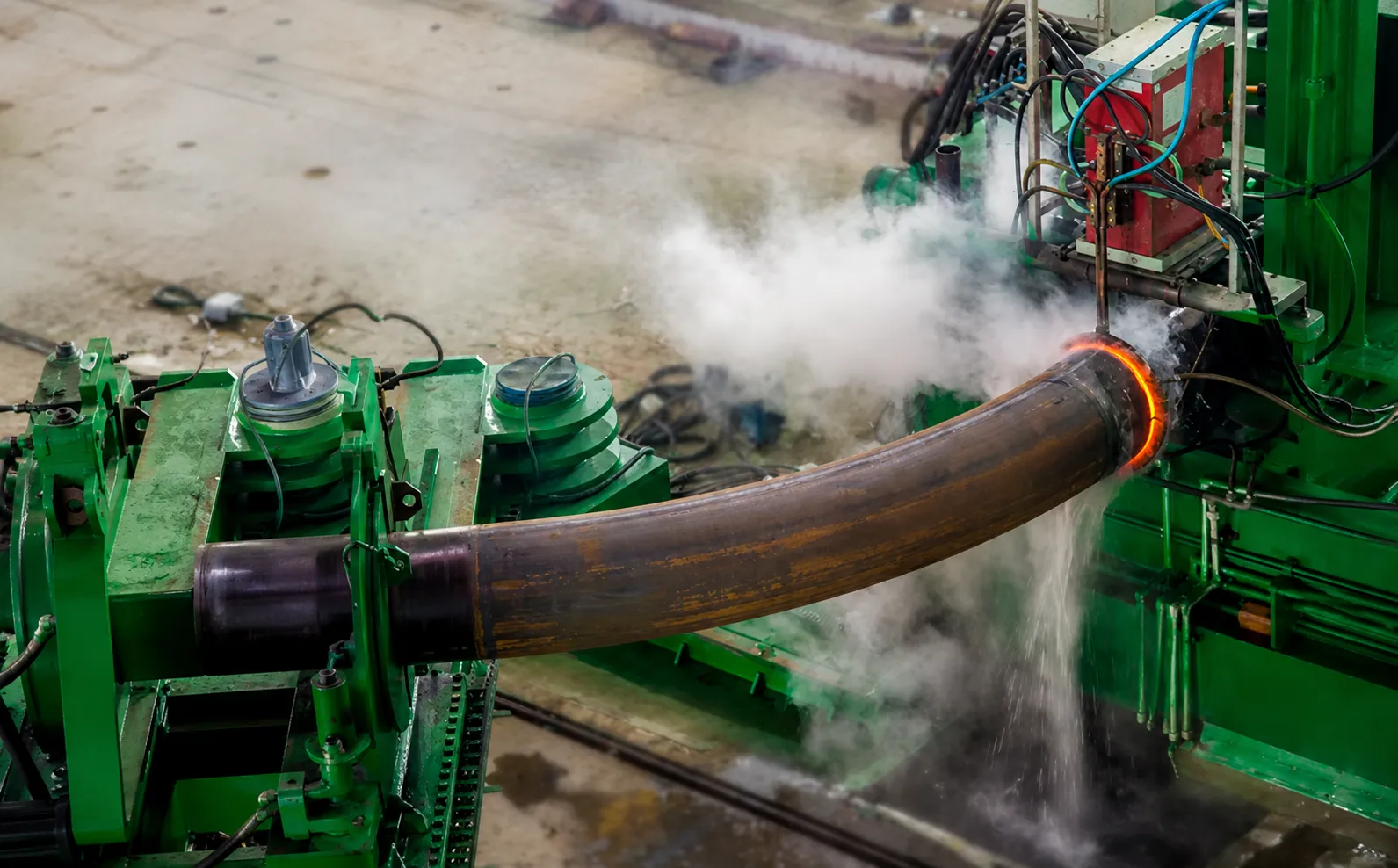

What Is the TYA 325D-14T Induction Pipe Bending Machine?
The TYA 325D-14T is an industrial induction pipe bending machine designed to bend pipe up to 325mm (12.75″) OD with wall thickness up to 14mm. It uses a concentrated electromagnetic induction coil to heat a narrow band of pipe to forming temperature — typically between 1,650°F and 2,100°F (900°C–1,150°C) — while mechanically bending it to a precise radius using a controlled push speed and swing arm.
Unlike cold bending methods such as rotary draw or roll bending, hot induction bending produces large-diameter, heavy-wall bends with minimal wall thinning, ovality, or distortion. The result is a structurally sound, dimensionally accurate bend that meets the stringent mechanical and code requirements of high-pressure pipeline systems used in oil and gas, petrochemical, power generation, and industrial construction.
Induction Pipe Bending Machine Specifications
| Model | TYA 325D-14T |
|---|---|
| Maximum Pipe Diameter (OD) | 325mm (12.75") |
| Maximum Wall Thickness | 14mm (0.55") |
| Bending Radius Range | 2.5D to 10D (custom tooling available) |
| Maximum Bending Angle | 0° to 180° |
| Compatible Pipe Materials | Carbon steel, alloy steel, stainless steel, duplex stainless |
| Induction Heating Frequency | Medium frequency induction coil |
| Control System | PLC / CNC with touchscreen HMI |
| Cooling System | Integrated water quench ring — adjustable flow rate |
| Heating Temperature Range | 1,650°F – 2,100°F (900°C – 1,150°C) |
| Push Speed Control | Variable speed drive — fully programmable |
| Power Supply | Three-phase, 50/60 Hz (customer site spec) |
| Machine Frame | Heavy-duty structural steel — fixed installation |
| Drive System | Servo-driven push carriage with encoder feedback |
| Custom Configurations | Available on request for larger OD or heavier wall |
| Manufacturer Certifications | AS9100 Rev D, ISO 9001 |
How the Hot Induction Pipe Bending Process Works
Pipe Setup and Alignment
The pipe is loaded onto the machine bed and aligned with the induction heating coil. The bend radius arm is preset to the required geometry based on the project drawing and specification.
IndInuction Coil Heating - 1,650°F to 2,100°F
The induction coil rapidly heats a narrow 1"–2" band of the pipe wall to the precise forming temperature. Only the zone being bent is heated — the rest of the pipe remains at ambient temperature, preserving its mechanical properties.
Controlled Push and Bend
As the pipe is fed through the induction coil at a precisely controlled push speed, the mechanical swing arm guides the heated section into the required bend radius and angle. CNC control ensures consistent geometry across every bend.
Immediate Water Quench Cooling
Immediately after forming, water quench sprays cool the bent section — locking in the bend geometry and initiating the required metallurgical transformation for the material grade.
Bend Completion and Output
Once the bend is formed and the section cooled, the machine resets automatically for the next bend cycle. The CNC control system logs each bend parameter — push speed, temperature, radius, and angle — enabling full process repeatability and production traceability.
Induction Pipe Bending Machine vs Cold Bending Equipment — Key Differences
| Factor | Induction Pipe Bending Machine | Cold Bending Equipment |
|---|---|---|
| Max pipe diameter (OD) | Up to 48" — large diameter capable | Typically limited to under 12" OD |
| Wall thickness handling | Heavy wall up to 4" — no tooling change | Limited by mandrel and die set capacity |
| Bend radius flexibility | 2.5D to 10D — set via CNC, no die change | Fixed by die set — limited range per tooling |
| Bending angle | 0° to 180° continuous | Typically fixed increments per die |
| Tooling changeover | Minimal — radius arm adjustment only | Full die set swap required per size |
| Production speed | High — continuous push feed | Slower — clamp, bend, unclamp cycle |
| Material distortion | Minimal wall thinning and ovality | Higher ovality risk on large OD pipe |
| Best suited for | Large-diameter, heavy-wall industrial pipe | Small-bore, light-wall tubing and pipe |
Compatible Pipe Materials
-
Carbon Steel
ASTM A106 Grade B/C, ASTM A53, API 5L Grade B, X42, X52, X60, X65, X70, X80 -
Alloy Steel (Chrome-Moly)
P5 (5Cr-0.5Mo), P9 (9Cr-1Mo), P11 (1.25Cr-0.5Mo), P22 (2.25Cr-1Mo), P91 (9Cr-1Mo-V) -
Stainless Steel
304, 304L, 316, 316L, 321, 347 -
Duplex & Super Duplex Stainless Steel
2205 (UNS S31803), 2507 (UNS S32750) -
Low-Temperature Carbon Steel
ASTM A333 Grade 6 (for cryogenic and LNG applications)
Industries That Use Induction Pipe Bending Machines
Our advanced pipe bending capabilities are designed to deliver precision, flexibility, and consistency across a wide range of industries. Using modern CNC technology and engineered tooling, we produce complex bends with minimal distortion and superior surface finish.
From small-diameter tubes to heavy-duty industrial pipes, our facility supports both prototype development and high-volume production with tight tolerances and repeatable accuracy.
Oil & gas
Petrochemical & refinery

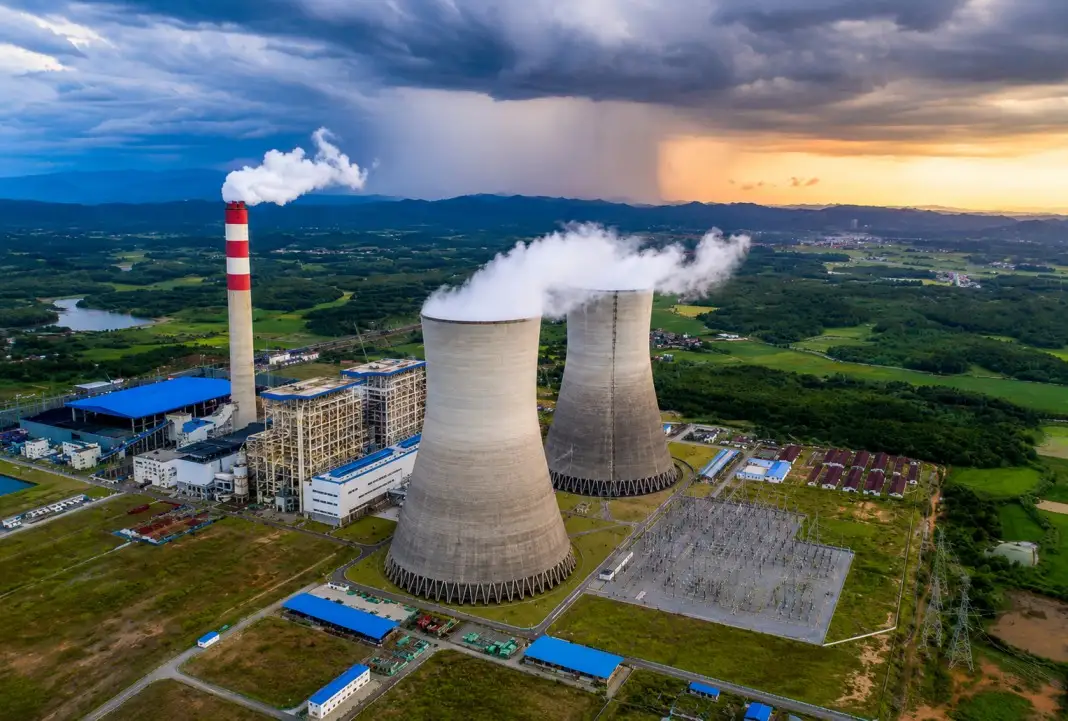

Power generation
Offshore & subsea
LNG & cryogenic
Shipbuilding
Industrial construction
Defense & aerospace
Get the TYA 325D-14T Induction Pipe Bending Machine for Your Fabrication Facility
Share your requirements:
- Pipe diameter range (OD min and max) you need to bend
- Wall thickness range your facility handles
- Pipe materials — carbon steel, alloy, stainless, duplex
- Bend radius and angle requirements
- Production volume — units per shift or per month
Start Your Project Today
Our engineering team will review your facility requirements and recommend the right induction pipe bending machine configuration with a detailed quotation.
Why Choose TYA for Induction Pipe Bending?
- Houston, Texas-Based Manufacturer — US-based support and delivery
- Wide Pipe Size Range — 2" to 48" OD in a single machine platform
- PLC / CNC Control System — touchscreen HMI, programmable bend sequences
- Heavy-Duty Machine Frame — built for continuous production shift use
- Integrated Quench Cooling System — adjustable, no separate equipment needed
- AS9100 & ISO 9001 Certified Manufacturing — quality-verified production
- Custom Machine Configurations Available — fixed, portable, and special builds
- Fast Quote Turnaround — machine specifications and pricing within 48 hours
FAQ Of Customer
The TYA 325D-14T is designed for pipe up to 325mm (12.75") OD with wall thickness up to 14mm. The model name directly reflects these specifications — 325D for 325mm diameter and 14T for 14mm wall thickness. For pipe sizes or wall thicknesses outside these parameters, TYA offers custom machine configurations on request.
The machine uses a PLC/CNC control system with a touchscreen HMI. Operators can program and store bend sequences including push speed, heating temperature, bend angle, and radius. The system logs all parameters per bend cycle for production traceability.
The induction pipe bending machine is compatible with carbon steel, alloy steel (including chrome-moly grades P5, P9, P11, P22, P91), stainless steel (304, 316, 321, 347), duplex stainless (2205, 2507), and low-temperature carbon steel grades. Material compatibility is determined by the machine's heating frequency and temperature range.
The machine produces bend radii from 2.5D to 10D. Custom radii outside this range are achievable with custom radius arm tooling. Bend angle capability is 0° to 180° continuous, programmable via the CNC control system.
An induction pipe bending machine heats a narrow band of pipe to forming temperature using an electromagnetic induction coil before bending, allowing large-diameter, heavy-wall pipe to be bent with minimal distortion. Cold bending equipment applies force at ambient temperature and is generally limited to smaller diameters and lighter wall thicknesses.
Yes. TYA supplies induction pipe bending machines in fixed installation and portable configurations depending on the facility requirements. Fixed machines are suited for high-volume fabrication shops while portable configurations are available for on-site or field fabrication applications.
The machine is available in medium frequency and high frequency induction heating configurations. Medium frequency is standard for large-diameter, heavy-wall pipe. High frequency configurations are suited for thinner wall and smaller diameter pipe. TYA's engineering team recommends the correct frequency based on your pipe size range.
The machine operates on three-phase power supply, 50/60 Hz, sized to the machine's induction heating power rating. TYA provides full electrical specifications with each machine order for facility planning and installation.
Yes. TYA is headquartered in Houston, Texas, and supplies induction pipe bending machines to pipe fabrication facilities, mechanical contractors, and industrial manufacturers across the entire United States, with installation support and commissioning available nationwide.
The standard model is the TYA 325D-14T — for pipe up to 325mm OD and 14mm wall thickness. If your requirements fall within these parameters, contact TYA via the Get In Touch form or at contact@tyallc.com or +1.281.949.6123 for pricing and delivery. For larger diameter or heavier wall requirements, share your full specifications and our engineering team will design a custom configuration.
Lead times depend on complexity, material, and volume. However, our Houston, Texas-based facility ensures efficient processing, quick turnaround, and reliable nationwide delivery.
You can request a quote by providing:
- Technical drawings or CAD files
- Material specifications
- Bending requirements and tolerances
- Quantity and delivery timeline
Our team will review your requirements and provide a detailed quotation with expert recommendations.
